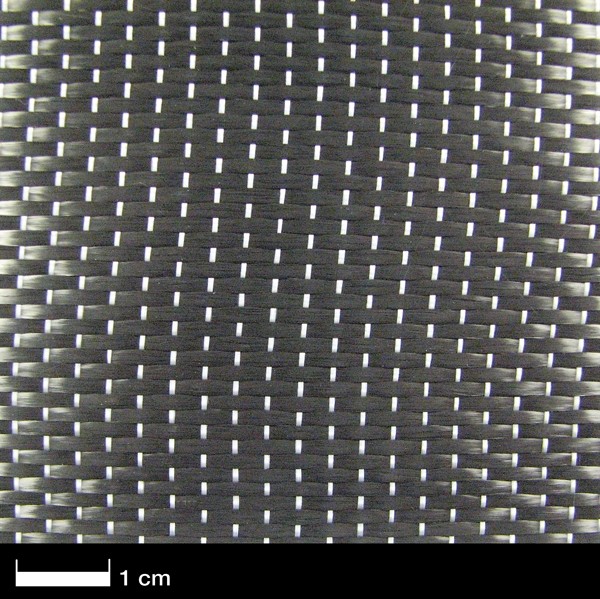

Carbon fabric 270 g/m² (UD, plain weave) 100 cm

Технические характеристики

USA: width 39.37", weight 8.0 oz/yd²

Plain weave, unidirectional, style 796
Width 100 cm

Fibres:
Weft: Carbon fibre 400 tex 6k, 6,5 ends/cm
Warp: Glass fibre 34 tex, 3,0 ends/cm

Application:
All fields requiring strength and rigidity in a specific direction (e.g. spars and spar booms).

Calculated data for hand laminates with 45 volume percent fibres:
Resin consumption: 195 g/m², laminate thickness: 0,303 mm, laminate weight: 465 g/m²

Attention:
We do not deliver this product from stock, we`ll prduce it on request.
