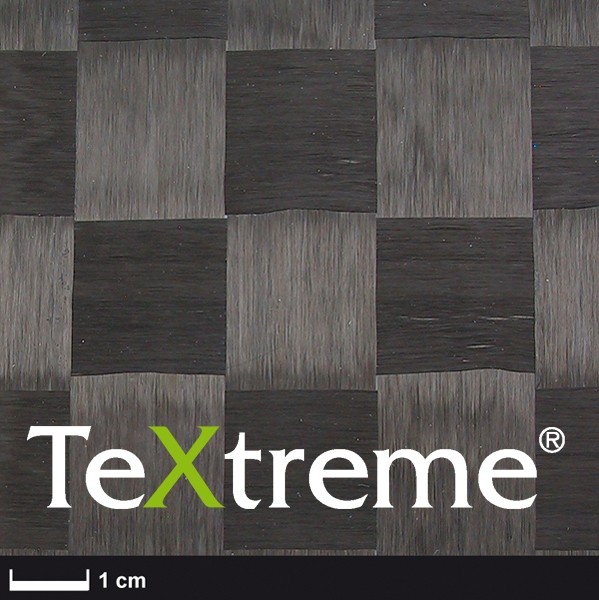

TeXtreme® Carbon fabric 160 g/m² (plain, HT) 100 cm

Технические характеристики

USA: width 39.37", weight 4.7 oz/yd²

TeXtreme® - Lightweight Carbon Fabric

TeXtreme® Spread Tow Fabric (STF) increases the performance and reduces the weight of your composites as well as enhancing the surface finish making the composites aesthetically appealing. The material is pliable and easy to handle when forming and cutting. TeXtreme® is available in a variety of areal weight and fiber type configurations.

Key benefits of TeXtreme®:

• Reduced weight by 20% or more
• Increased mechanical performance
• Superior surface finish
• Unique aesthetic look
• Easy to handle and cut due to a stable structure

More Information:
Storing: Dry and below 30 °C
UV: No sensitivity
Shelf life: No limitation
EP-Binder: 18 °C softening takes place (improved processing at room temperature)

Please note:
Due to the manufacturing process sporadical "weaving defects" can occur, mostly consisting of warp joints. These are labelled with coloured tape on the fabric itself as well as on its edge. It´s possible to remove this labelling with the use of heat (heat gun) without leaving any residue.
We do guarantee a free of defects roll up to 3 m length.

Plain weave, width 100 cm

Fibre type: Torayca® T700SC 12k, tape width 20 mm

Calculated data for hand laminates with 35 volume percent fibres:
Resin consumption: 115 g/m², laminate thickness: 0.160 mm, laminate weight: 275 g/m²
