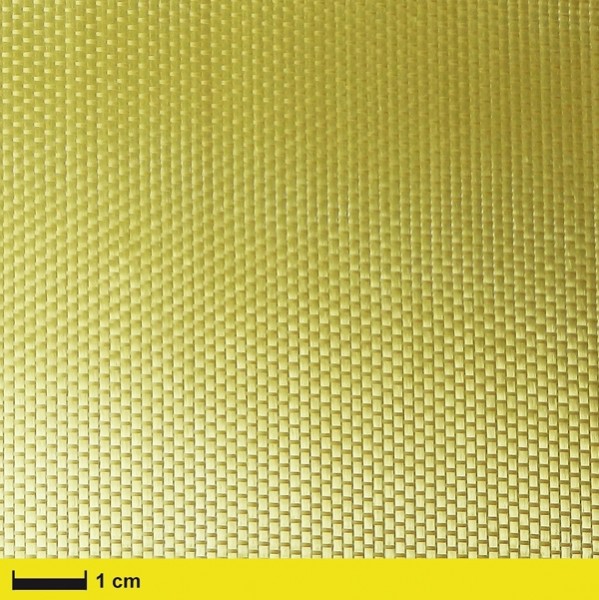

Aramid fabric 109 g/m² (plain, unidirectional) 120 cm

Технические характеристики

USA: width 47.24", weight 3.2 oz/yd²

Width 120 cm, unidirectional

Fibres:
Warp: Twaron 2200 121 tex, 6,7 ends/cm
Weft: Technora T/240 22 tex, 10 ends/cm

Application:
Laminates in aircraft construction, model aircraft construction, motor sports (e.g. cowlings, underbody protection), boat building, model boat construction

This fabric is suitable for parts where tensile strength and flexural strength are required in a preferred direction. Aramid fibers have high specific strength, low density, high impact resistance, good heat resistance and good vibration damping and dimensionality.

Calculated data for hand laminates with 35 volume percent fibres:
Resin consumption: 154 g/m², laminate thickness: 0.215 mm, laminate weight: 263 g/m²
