Описание товара

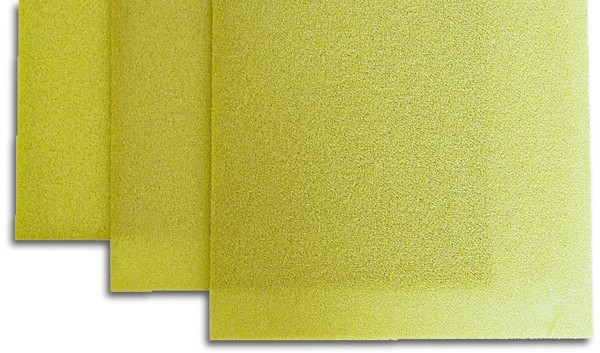

AIREX® C 70.55 (approx. 50 g/m², yellow) 1225 x 575 x 1.2 mm

от 16.54 € Арт. 520201

Технические характеристики

Cross-linked rigid expanded PVC foam

Decay resistingGood thermal insulation
Self-extinguishing, good behaviour in fire
Low resin absorption
Good compatibility with styrene



Applications:

Ship and boat building: Decks, bulkhead walls, superstructures, interiors, hull parts
Rail and road vehicles: Supporting structures, interior parts, floors, dividing walls, etc.
Industrial components: Construction of wind driven turbines, containers, covers, sports aircraft and glider construction

Approval permits/tests: Germanischer Lloyd, fire testing in accordance with DIN 5510 (rail vehicles).

This material can be easily post-cured up to 65 °C without deforming. Thermoforming can be done at temperatures > 115 °C.

Tolerances: thickness ± 0.5 mm, length and width ± 10 mm, density 54-69 kg/m³

Nominal density: 60 kg/m³

Due to the production method it comes to a different distribution of density at the ingot, from which the sheets are manufactured. Border areas exhibit a higher density compared to the core. With increasing density the porosity of the material will decrease at the same time, which could result in a lower resin uptake (depending on the process used).

Выберите интересующий вариант

AIREX® C 70.55 (yellow) 1225 x 575 x 1,2 mm, box/ 1 sheet

В наличии  -  Арт.: 5202012
16.54 €
Не доступен для заказа

AIREX® C 70.55 (yellow) 1225 x 575 x 1,2 mm, box/ 5 sheets

В наличии  -  Арт.: 5202013
48.31 €
Не доступен для заказа

AIREX® C 70.55 (yellow) 1225 x 575 x 1,2 mm, box/ 10 sheets

В наличии  -  Арт.: 5202014
87.94 €
Не доступен для заказа

AIREX® C 70.55 (yellow) 1225 x 575 x 1,2 mm, box/ 20 sheets

В наличии  -  Арт.: 5202015
161.36 €
Не доступен для заказа

AIREX® C 70.55 (yellow) 1225 x 575 x 1,2 mm, box/ 40 sheets

В наличии  -  Арт.: 5202016
303.21 €
Не доступен для заказа

AIREX® C 70.55 (yellow) 1225 x 575 x 1,2 mm, box/ 60 sheets

В наличии  -  Арт.: 5202017
420.9 €
Не доступен для заказа
