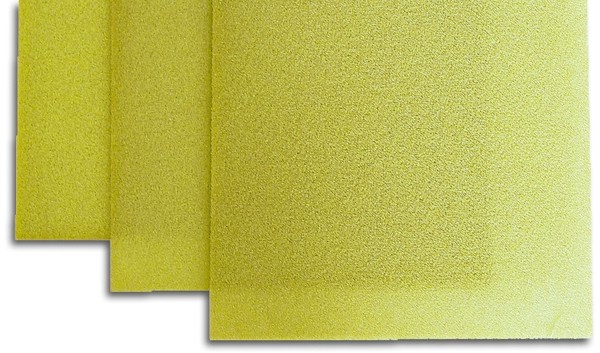

AIREX® C 70.55 (approx. 252 g/m², YELLOW) 1225 x 575 x 6 mm

от 38.68 € Арт. 520206

Технические характеристики

Cross-linked rigid expanded PVC foam

Decay resistingGood thermal insulation
Self-extinguishing, good behaviour in fire
Low resin absorption
Good compatibility with styrene



Applications:

Ship and boat building: Decks, bulkhead walls, superstructures, interiors, hull parts
Rail and road vehicles: Supporting structures, interior parts, floors, dividing walls, etc.
Industrial components: Construction of wind driven turbines, containers, covers, sports aircraft and glider construction

Approval permits/tests: Germanischer Lloyd, fire testing in accordance with DIN 5510 (rail vehicles).

This material can be easily post-cured up to 65 °C without deforming. Thermoforming can be done at temperatures > 115 °C.

Tolerances: thickness ± 0.5 mm, length and width ± 10 mm, density 54-69 kg/m³

Nominal density: 60 kg/m³

Due to the production method it comes to a different distribution of density at the ingot, from which the sheets are manufactured. Border areas exhibit a higher density compared to the core. With increasing density the porosity of the material will decrease at the same time, which could result in a lower resin uptake (depending on the process used).

Выберите интересующий вариант

AIREX C70.55 (252 g/m²) 1225 x 575 x 6 mm, box/ 1 sheets

В наличии  -  Арт.: 5202061
38.68 €
Не доступен для заказа

AIREX C70.55 (252 g/m²) 1225 x 575 x 6 mm, box/ 3 sheets

В наличии  -  Арт.: 5202062
94.13 €
Не доступен для заказа

AIREX C70.55 (252 g/m²) 1225 x 575 x 6 mm, box/ 6 sheets

В наличии  -  Арт.: 5202063
176.6 €
Не доступен для заказа

AIREX® C70.55 (252 g/m²) 1225 x 575 x 6 mm, box/ 12 sheets

В наличии  -  Арт.: 5202064
324.28 €
Не доступен для заказа

AIREX C70.55 (252 g/m²) 1225 x 575 x 6 mm, box/ 1 sheets

В наличии  -  Арт.: 5202061
38.68 €
Не доступен для заказа

AIREX C70.55 (252 g/m²) 1225 x 575 x 6 mm, box/ 3 sheets

В наличии  -  Арт.: 5202062
94.13 €
Не доступен для заказа

AIREX C70.55 (252 g/m²) 1225 x 575 x 6 mm, box/ 6 sheets

В наличии  -  Арт.: 5202063
176.6 €
Не доступен для заказа

AIREX® C70.55 (252 g/m²) 1225 x 575 x 6 mm, box/ 12 sheets

В наличии  -  Арт.: 5202064
324.28 €
Не доступен для заказа
