Описание товара

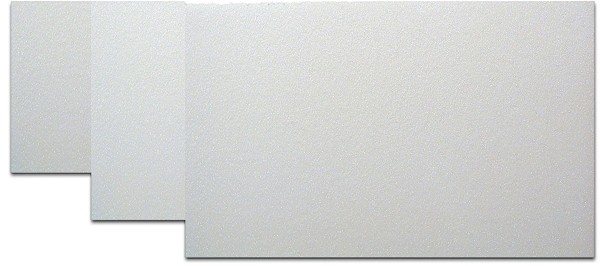

Rohacell® 31 IG-F 300 x 300 mm

от 9.16 € Арт. 5331-030-030

Технические характеристики

High core material for industrial applications with a fine cell structure

Specification:
Closed cell foam PMI (polymethacrylimide, IG-F = Fine industrial grade, high performance core material for sandwich components

• Superior mechanical properties
• High heat distortion temperature and solvent resistance
• Thermoformable
At low temperatures, low thermal conductivity
• Low thermal conductivity at low temperatures
• Very good strength values
• Very good dielectric properties
• Very good X-ray transparency
• Less resin absorption due to finer cell structure
• Natural colour white

Applications:
Automotive engineering: high-strength cabs (truck bodywork)
Medical engineering: X-ray treatment tables
Others: Sports articles, model construction, SMC parts sports aircraft construction


Technical data:
Apparent density (ISO 845): 32 kg/m³
Compressive strength(ISO 844): 0,4 MPa
Tensile strength (ISO 527-2): 1,0 MPa
Shear strength (DIN 53294): 0,4 MPa
Modulus of elasticity (ISO 527-2): 36 MPa
Shear modulus(DIN 53294): 13 MPa

In 1, 2, 3, 4, 5 and 6 mm thickness available.

Выберите интересующий вариант

Rohacell 31 IG-F (300 x 300 mm) T = 2,0 mm

В наличии  -  Арт.: 5331-030-030-02
9.16 €
Не доступен для заказа

Rohacell 31 IG-F (300 x 300 mm) T = 3,0 mm

В наличии  -  Арт.: 5331-030-030-03
9.16 €
Не доступен для заказа
