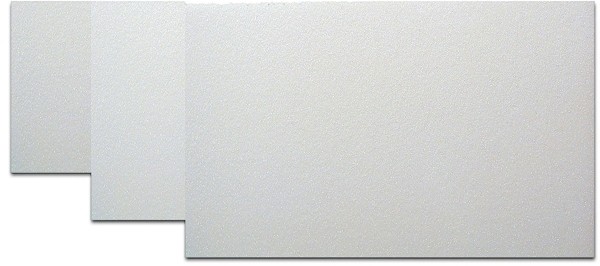

Rohacell® 31 IG-F 2500 x 1250 mm, T = 20 mm, from 50 pcs
Технические характеристики
Minimum order size 50 pcs, transport only by carrier and pallet, smaller quantities are available on personal requestHigh core material for industrial applications with a fine cell structure
Specification:
Closed cell foam PMI (polymethacrylimide, IG-F = Fine industrial grade, high performance core material for sandwich components
• Superior mechanical properties
• High heat distortion temperature and solvent resistance
• Thermoformable
• At low temperatures, low thermal conductivity
• Low thermal conductivity at low temperatures
• Very good strength values
• Very good dielectric properties
• Very good X-ray transparency
• Less resin absorption due to finer cell structure
• Natural colour white
Applications:
Automotive engineering: high-strength cabs (truck bodywork)
Medical engineering: X-ray treatment tables
Others: Sports articles, model construction, SMC parts sports aircraft construction
Technical data:
Apparent density (ISO 845): 32 kg/m³
Compressive strength(ISO 844): 0,4 MPa
Tensile strength (ISO 527-2): 1,0 MPa
Shear strength (DIN 53294): 0,4 MPa
Modulus of elasticity (ISO 527-2): 36 MPa
Shear modulus(DIN 53294): 13 MPa
