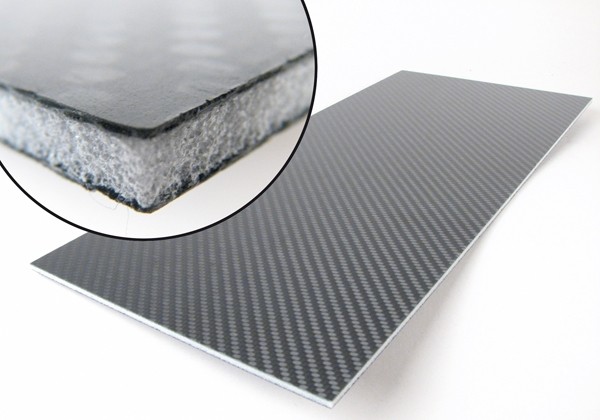

This carbon fibre sandwich sheet is manufactured out of HT-carbon fibre prepregs with a transparent epoxy matrix and a sandwich core of Rohacell in press moulding.
The 2 surface layers consist of 3k fabric Style 452 with 5 threads per cm in twill weave 2/2. They are orientated under 0°/90°.
R&G carbon fibre sandwich sheets could easily be milled, sawn or cut by waterjet.
Technical data:
Wight: ca. 70 g
Surface layers: Carbon fabric 204 g/m² twill 2/2
Sandwich core: Rohacell IG 51, 2.6 mm thick
Heat deflection temperature: 120 °C
