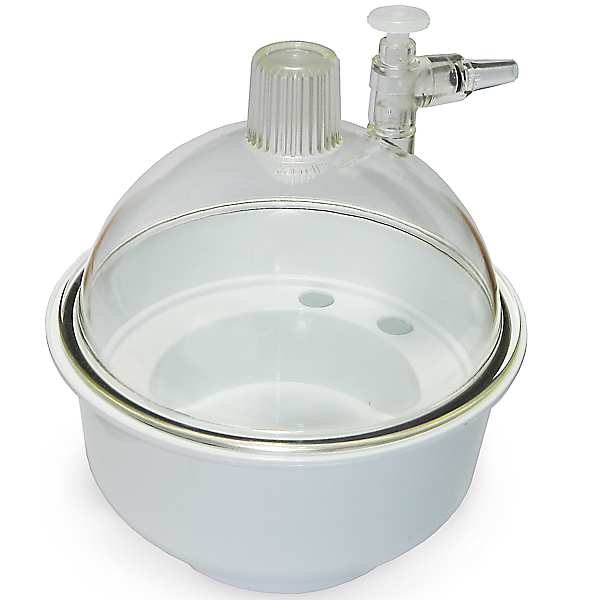

Inexpensive Vacuum bell jar, polycarbonate/polypropylene
- Transparent, light, almost unbreakable
- Vacuum resistant up to 0.95 bar
- Firm upright position
- Only suitable for room temperature
- Airtight due to neoprene O-ring, greasing not required
- Not suitable for organic solvent
Application:
Used to bleed silicon caoutchouc mixtures
Technical data:
- Removable PP tap cock with PP plugs
- Connection for hoses with inner diameter of 8 - 10 mm in lower section and cover
- Vent plugs for normal pressure
- Height total: 185 mm
- Outer diameter including tap cock: 170 mm
- Inner diameter: 150 mm
- Max. height above plate: 130 mm
- Capacity: 2,15 l
Can be applied using electric R&G vacuum pumps (please order separately)
