Описание товара

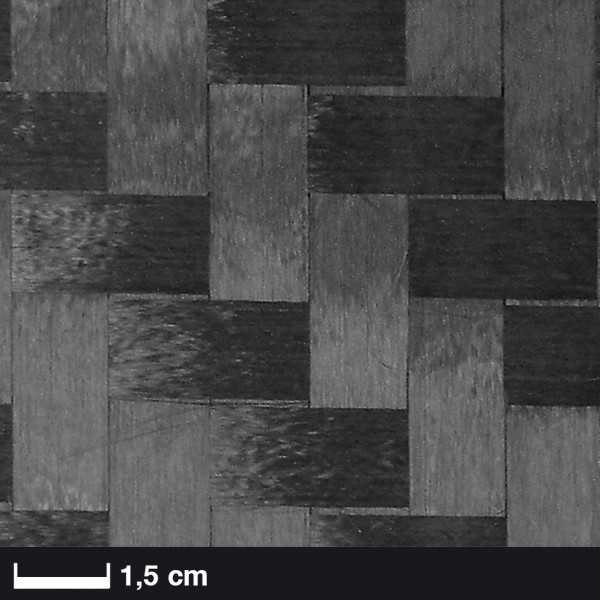

Carbon fabric ST 160 g/m² (twill) 100 cm

от 750 руб. Арт. 190227-T
все товары R&G

Технические характеристики

USA: width 39.37", weight 4.7 oz/yd²
Width: 100 cm
2/2 Twill weave

Fibre: Grafil TR50S 15k

Technical data:
Tensile strength: 4900 MPa
E-Modulus: 240 GPa
Elongation at break: 2 %

Tape width 15 mm

Spread Tow Fabric (STF) increases the performance and reduces the weight of your composites as well as enhancing the surface finish making the composites aesthetically appealing. The material is pliable and easy to handle when forming and cutting.

  • Increased mechanical performance
  • Superior surface finish
  • Unique aesthetic look
  • Easy to handle and cut due to a stable structure

Calculated data for hand laminates with 35 volume percent fibres:
Resin consumption: 115 g/m², laminate thickness: 0.160 mm, laminate weight: 275 g/m²

Выберите интересующий вариант

Carbon Spread Tow fabric (15 mm) Twill, roll/ 0.5 m

Carbon Spread Tow fabric (15 mm) Twill, roll/ 0.5 m
В наличии  -  Арт.: 190227-T-100-0
750 руб.

Carbon Spread Tow fabric (15 mm) Twill, roll/ 1 m

Carbon Spread Tow fabric (15 mm) Twill, roll/ 1 m
В наличии  -  Арт.: 190227-T-100-1
1305 руб.

Carbon Spread Tow fabric (15 mm) Twill, roll/ 2 m

Carbon Spread Tow fabric (15 mm) Twill, roll/ 2 m
В наличии  -  Арт.: 190227-T-100-2
2427 руб.

Carbon Spread Tow fabric (15 mm) Twill, roll/ 3 m

Carbon Spread Tow fabric (15 mm) Twill, roll/ 3 m
В наличии  -  Арт.: 190227-T-100-3
3462 руб.

Carbon Spread Tow fabric (15 mm) Twill, roll/ 5 m

Carbon Spread Tow fabric (15 mm) Twill, roll/ 5 m
В наличии  -  Арт.: 190227-T-100-4
5391 руб.

Carbon Spread Tow fabric (15 mm) Twill, roll/ 10 m

Carbon Spread Tow fabric (15 mm) Twill, roll/ 10 m
В наличии  -  Арт.: 190227-T-100-5
10038 руб.

Carbon Spread Tow fabric (15 mm) Twill, roll/ 20 m

Carbon Spread Tow fabric (15 mm) Twill, roll/ 20 m
В наличии  -  Арт.: 190227-T-100-6
19110 руб.

Carbon Spread Tow fabric (15 mm) Twill, roll/ 50 m

Carbon Spread Tow fabric (15 mm) Twill, roll/ 50 m
В наличии  -  Арт.: 190227-T-100-7
43950 руб.

Carbon Spread Tow fabric (15 mm) Twill, roll/ 100 m

Carbon Spread Tow fabric (15 mm) Twill, roll/ 100 m
В наличии  -  Арт.: 190227-T-100-8
82500 руб.

Дополнительная информация

MSDS Carbon fabrics (all)Comparables carbon
