Carbon fabric 200 g/m² (twill, non-shift finish) 100 cm

Технические характеристики

USA: width 39.37", weight 6.0 oz/yd²

Fibrer: Torayca T 300 J or equivalent in 200 tex (3k)

Style 452 non-shift finish
Weave: Twill weave
Width: 100 cm
Setting Thr/cm: 5 x 5

Basic weiht 204 g/m² + 5 g/m² EP binder

Application:
Supporting parts in model construction, motor sports, boat building, and design of sports equipment; carbon designs in auto-motive engineering.

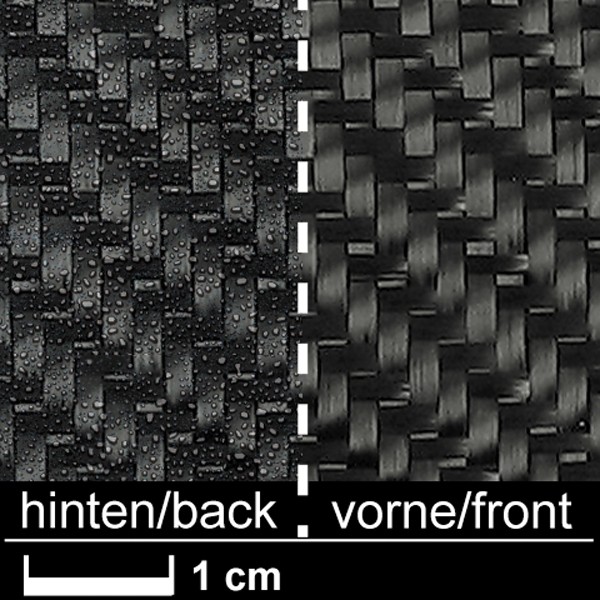

The fabric is coated on one side with an EP-Binder, backside is smooth.

The EP binder prevents slippage, so cut pieces do not lose threads. Heat (pressure mould) can be used to preform the fabric before impregnation with resin. Specifically for carbon designs in automotive engineering.Even an iron on the surface (eg during coating of surfaces) is possible. The fabric will be formed only and has additionally to be impregnated with resin.

Information about application eWiki.

Calculated data for hand laminates with 35 volume percent fibres:
Resin consumption: 234 g/m², laminate thickness: 0.327 mm laminate weight: 438 g/m²
