Описание товара
Carbon fabric 245 g/m² (twill, non-shift) 120 cm
от 17.85 €
17.85 €
Арт. 190235SV-120
Технические характеристики
USA: width 47.24", weight 7.2 oz/yd²
Fibre: Tenax® HTA 40 / 200 tex (3k)
Style 462-120 non-shift finish
Twill weave
Width 120 cm
Basic weight 245 g/m² + 5 g/m² EP binder
Application:
Supporting parts in model construction, motor sports, boat building, and design of sports equipment; carbon designs in auto-motive engineering. This fabric is based on the 245 g/m² carbon fabric approved for aviation.

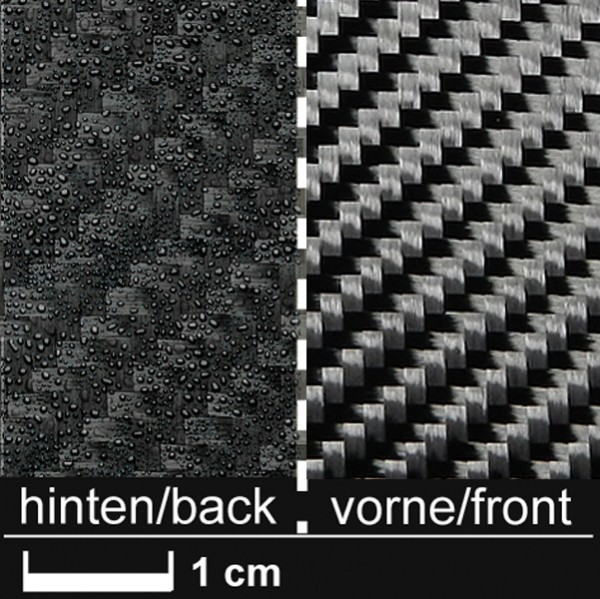

The fabric is coated on one side with an EP-Binder, backside is smooth.
The EP binder prevents slippage, so cut pieces do not lose threads. Heat (pressure mould) can be used to preform the fabric before impregnation with resin. Specifically for carbon designs in automotive engineering.Even an iron on the surface (eg during coating of surfaces) is possible. The fabric will be formed only and has additionally to be impregnated with resin.
This fabric is based on the 245 g/m² carbon fabric manufactured for aviation, but without WLB approval.
Information about application eWiki.
Calculated data for hand laminates with 35 volume percent fibres:
Resin consumption: 281 g/m², laminate thickness: 0.393 mm, laminate weight: 526 g/m²
