Carbon non-crimp fabric 100 g/m² (unidirectional, HM) 20 cm

Технические характеристики

USA: width 7.87", weight 2.9 oz/yd²

Fibre: Torayca M 40 J

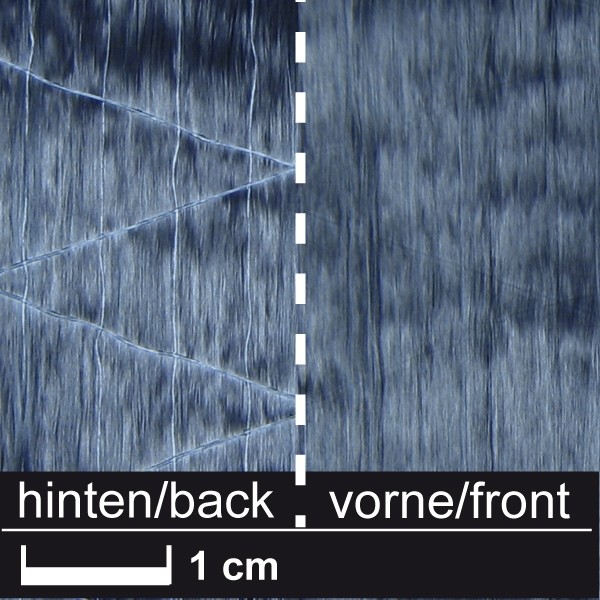

Plastic-scrim (PET) one-sided

Comparatives:
High modulus fiber Torayca M 40 J to HT carbon fiber (most commonly used standard fiber)
Tensile strength of about 12 % higher
Tensile modulus of about 58 % higher
(At a slightly lower elongation at break of 1.2 % from 1.5 %)

Application:
Unidirectional non crimp fabric, lying absolutely flat, almost 100 % utilisation of fibre properties, above all considerably higher compressive strength than fabric, higher fibre content possible, all cuts possible without fraying. For max rigidity values and excellent tensile and compressive strengths. Film on one side.

Calculated data for hand laminates with 45 volume percent fibres:
Resin consumption: 787,5 g/m², laminate thickness: 0,136 mm, laminate weight: 187,5 g/m²

Technical data:
Width: 20 cm
Density: 1.77 g/cm³
Tensile strength: 4410 MPa
Tensile modulus: 377 GPa
Elongation at break: 1.2 %
