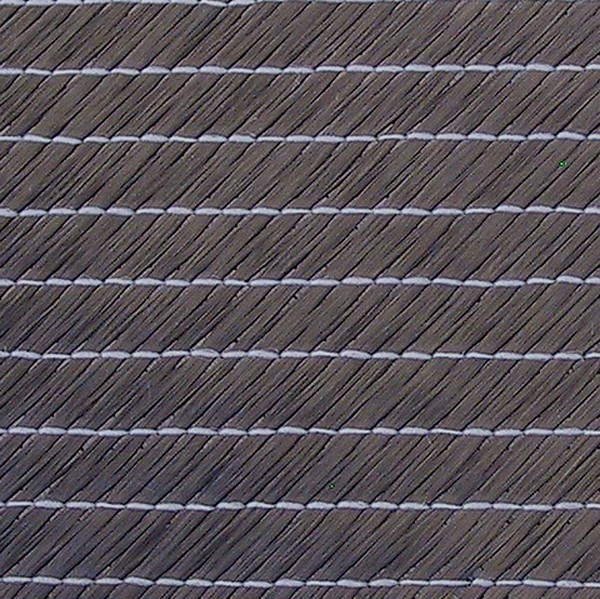

Carbon non-crimp fabric 411 g/m² (biaxial) 127 cm

Технические характеристики

USA: width 50", weight 12.1 oz/yd²

Fabric specification: Aksa Carbon A-42 50 C in warp and weft
Fibre specification: 12k
Construction: -45°/+45°
Surface weight in g/m²: 201/201
Stitch dtex: Textured Polyester, 76 dtex
Stitch type: Pillar
Stitch weight: 9 g/m²
Threads of stabilication at 0° (E glass 34 tex) and 90° (E glass 34 tex)
Tolerance: 5 %

Application:
Motor sports, ship construction, sports equipment and model construction. This biaxial NCF has two unidirectional plies laid at an angle of ±45 ° which are stitch-bonded to each other. Drapability is improved compared to conventional NCF with plastic-scrim. Due to marginal ondulation there is a better utilisation of the fibre´s properties. Particular advantage: torsional layers could be done without offcut.

Calculated data for hand laminates with 35 volume percent fibres:
Resin consumption: 482 g/m², laminate thickness: 0.674 mm, laminate weight: 902 g/m²
