USA: width 39.37", weight 0.2 oz/yd²
HT-Fibre
Technical data:
Width: 100 cm
Thickness: 0,10 mm
Filament length: 6-12 mm
Filament diameter: 7 µm
Binder: PVA (Polyvinyl alcohol)
Surface resistance Ωm (machine direction): 6
Surface resistance Ωm (cross direction): 8

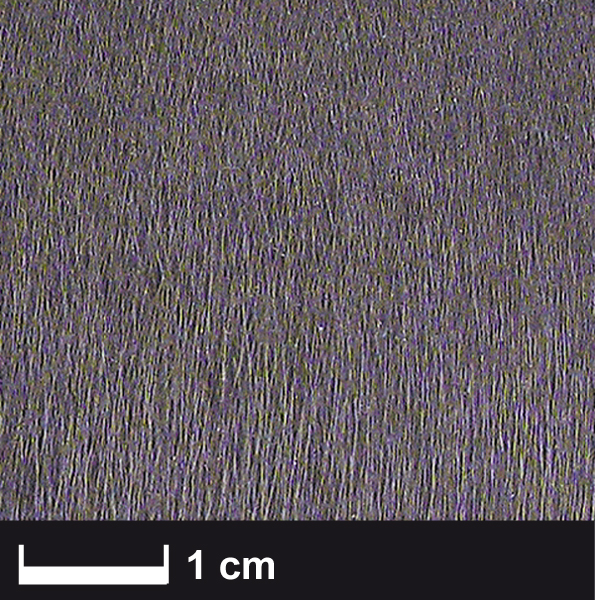

Low priced carbon fibre non woven for ultra lightweight overlays specifically in model aircraft construction. The non-woven will be processed with epoxy resin. Suitable surfaces are balsa, foams (Depron®) and other lightweigt materials.
With the carbon non-woven 8 g/m² a quasiisotropic reinforcement will be assembled that aims highest rigidity and impact strength at lowest weight. Compared with today’s conventional 25 g/m² glass filament fabrics these nonwovens can be used to make considerably lighter components with the same lay up procedure.
Preliminary tests are essential for determining the optimal degree of impregnation.
