Описание товара

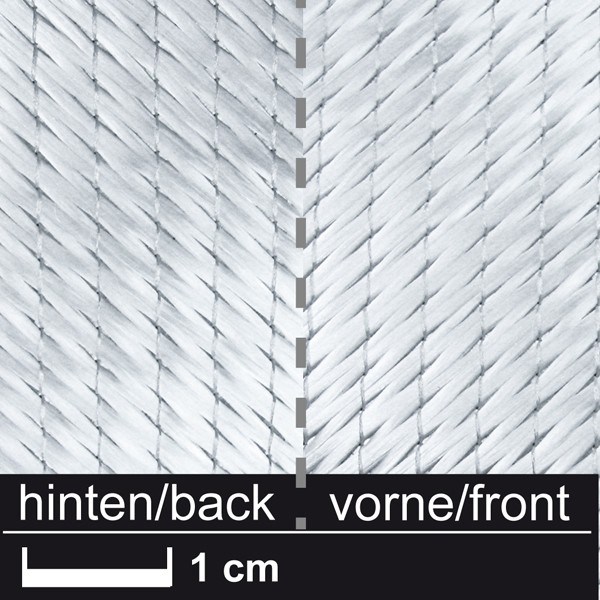

Glass non-crimp fabric 988 g/m² (biaxial, silane) 127 cm
от 14.88 €
Арт. 1910980-BA-127
Технические характеристики
USA: width 50", weight 29.1 oz/yd²
High quality non-crimp fabric with consitent weave pattern.
Technical data:
Silane
Width: 127 cm
Construction: -45°/+45° (476 g/476 g)
Fibre: 100% E-Glas
Tolerance: +/-5%
Application:
Boat building, ultralight aircraft construction, torsional elements, rotor blades e.g. for wind turbines; this biaxial inlay has two plies of unidirectional inlay sewn at an angle of ± 45° to each other; good drapability.
Calculated data for hand laminates with 35 volume percent fibres:
Resin consumption: 737 g/m², laminate thickness: 1.029 mm, laminate weight: 1674 g/m²
