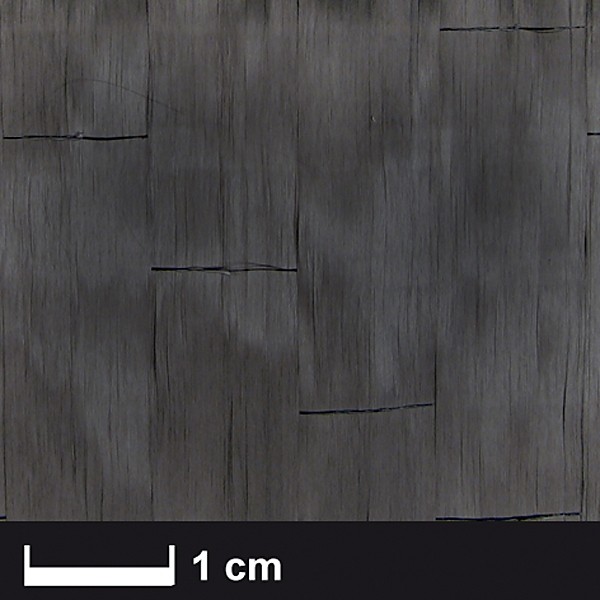

Carbon non-crimp fabric ST 154 g/m² (UD, IMS 65) 127 cm

от 627 руб. Арт. 193110-IMS
все товары ECC

Технические характеристики

USA: width 50", weight 4.5 oz/yd²

Width 127 cm

Fibres:
Warp (0°): Tenax® - E IMS65 E23 24k
Weft (90°): PET-Schmelzklebegarn Copo tex 20

Warp x weft (Fd/cm): 1,8 x 0,8

Unidirectional carbon non-crimp fabric from spread carbon fibers (ST = spread tow). The spread warp yarns are held by very few and very thin threads.

IM-Carbon fibres (Intermidiate modulus) are suitable for very lightweight applicationss. In comparision with standard carbon fibre (HTS or T 300) this yarntype provides an approximately 20 % higher stiffness and an about 50 % higher tensile strength at increased elongation at break of 1.9 %.

This non-crimp fabric has a very nice appearance with a closed surface, due to the good spreadability of the yarn.

Calculated data for hand laminates with 35 volume percent fibres:
Resin consumption: 111,5 g/m², laminate thickness: 0,15 mm, laminate weight: 265,5 g/m²






Выберите интересующий вариант

Carbon NCF ST (IMS 65) 134 g/m? UD, 127 cm, roll/ 0.5 m

Carbon NCF ST (IMS 65) 134 g/m? UD, 127 cm, roll/ 0.5 m
В наличии  -  Арт.: 193110-IMS-0
627 руб.

Carbon NCF ST (IMS 65) 134 g/m? UD, 127 cm, roll/ 1 m

Carbon NCF ST (IMS 65) 134 g/m? UD, 127 cm, roll/ 1 m
В наличии  -  Арт.: 193110-IMS-1
1089 руб.

Carbon NCF ST (IMS 65) 134 g/m? UD, 127 cm, roll/ 2 m

Carbon NCF ST (IMS 65) 134 g/m? UD, 127 cm, roll/ 2 m
В наличии  -  Арт.: 193110-IMS-2
1944 руб.

Carbon NCF ST (IMS 65) 134 g/m? UD, 127 cm, roll/ 3 m

Carbon NCF ST (IMS 65) 134 g/m? UD, 127 cm, roll/ 3 m
В наличии  -  Арт.: 193110-IMS-3
2751 руб.

Carbon NCF ST (IMS 65) 134 g/m? UD, 127 cm, roll/ 5 m

Carbon NCF ST (IMS 65) 134 g/m? UD, 127 cm, roll/ 5 m
В наличии  -  Арт.: 193110-IMS-5
4455 руб.

Carbon NCF ST (IMS 65) 134 g/m? UD, 127 cm, roll/ 10 m

Carbon NCF ST (IMS 65) 134 g/m? UD, 127 cm, roll/ 10 m
В наличии  -  Арт.: 193110-IMS-6
8304 руб.

Carbon NCF ST (IMS 65) 134 g/m? UD, 127 cm, roll/ 20 m

Carbon NCF ST (IMS 65) 134 g/m? UD, 127 cm, roll/ 20 m
В наличии  -  Арт.: 193110-IMS-7
15570 руб.

Carbon NCF ST (IMS 65) 134 g/m? UD, 127 cm, roll/ 50 m

Carbon NCF ST (IMS 65) 134 g/m? UD, 127 cm, roll/ 50 m
В наличии  -  Арт.: 193110-IMS-8
35250 руб.

Дополнительная информация

MSDS Carbon fabrics (all)Comparables carbon
