Carbon flexible fibre sleeve Ø 3 - 8 mm, unidirectional
от 6.66 €
Арт. 202117
Технические характеристики
Technical data:Width flat: approx. 5-12.5 mm
Width at delivery: approx. 5 mm
Diameter: approx. 3-8 mm
Material:
Fibres:
Warp: HTS 40 F13 800 tex (12k)
Weft: Lycra/Helanka black 2times
Fibres:
Warp: HTS 40 F13 800 tex (12k)
Weft: Lycra/Helanka black 2times
Fabric:
Plain weave
Thread density: Warp (Fd/cm): 8,3 ± 1, weft (Fd/cm): 3 ± 1
Weight stretched (g/m²): approx. 680 ± 5%
Weight unstretched (g/m²): approx. 270 ± 5%
Fabric thickness: 0.80 mm ± 0.03%
Plain weave
Thread density: Warp (Fd/cm): 8,3 ± 1, weft (Fd/cm): 3 ± 1
Weight stretched (g/m²): approx. 680 ± 5%
Weight unstretched (g/m²): approx. 270 ± 5%
Fabric thickness: 0.80 mm ± 0.03%

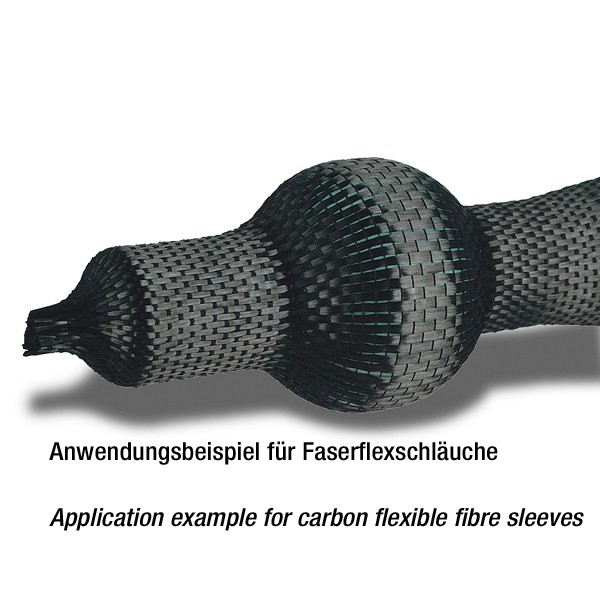

This highly flexible hose is made from longitudinal, high-tensile carbon fibre. Pipes produced using this material have excellent flexural strength features due to the fact that they are reinforced in load direction. The elastic supporting threads ensure that the hose can be adapted to various diameters.
