Технические характеристики
Fibre: Tenax 8000 dtex (12k)
Diameter: von 60–810 mm
Technical data at 45° braid angle:
Diameter: 255.3 mm
Width flat: 401 mm
Weight: 325.8 g/m
Application:

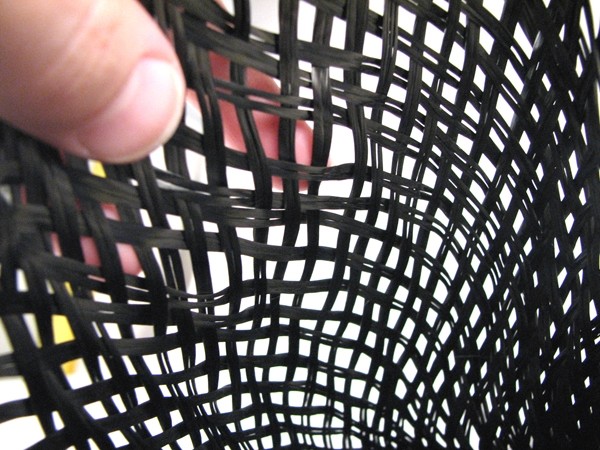

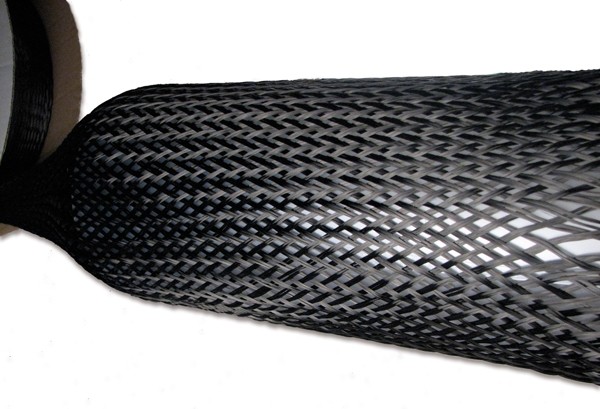

Torsion-proof pipes of various diameters. Orthopaedic engineering (prosthesis), sport equipment construction. The sleeve diameter can be varied by clenching or stretching. Delivered in stretched condition.
Processing:
Use plenty of R&G release spray on core material (slide coating) and allow to dry. Pass sleeve over material and pull both ends for proper fit – fit under tension if necessary. Apply resin with a brush. The area to be processed can be warmed using a hairdryer if required. This will liquify the resin and impregnate the fibre quickly and safely. (Do not forget resin fumes – ensure that the room is well aired or wear a protective mask.) The core is gripped following hardening and the pipe removed. Small size components may be pre-frozen. In this way it is easier to remove the shrunken metal core.
For technical reasons it is not possible to wind up sleeves in a fibre angle of 45°. The amounts of differ therefore on the length at 45°.
