Peel Ply MP 144 g/m², 150 cm

Технические характеристики

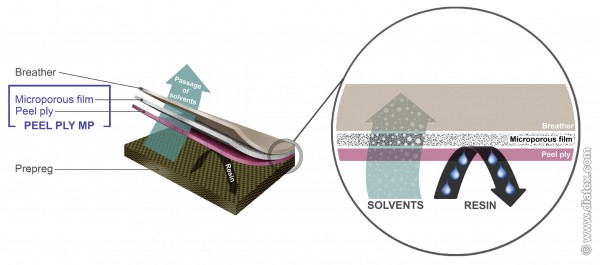

Peel ply MP is a microporous multilayer system, used in manufacturing processes for vacuum moulding of composite materials with techniques such as wet lay-up, prepreg and thermoforming of organic sheet.

The peel ply is backed by a microporous film. Under vacuum resin can’t pass through the film, except gases. With this product a uniform deaeration is possible, which improves the laminate´s quality considerably. In order to achieve release from a cured laminate, the membrane should be placed fabric side down.

Technical data:
Service temperature: 180 °C
Weight (gross): 144 g/m²
Width: 150 cm
Color: Pink / White

Please be aware that EADS Deutschland GmbH holds European Patent EP 1 181 149 B1 along with counterparts in other countries for the VAP infusion process. For this process a number of R&G products can be used and each end user shall consult EADS Deutschland GmbH prior to use on the VAP process.
