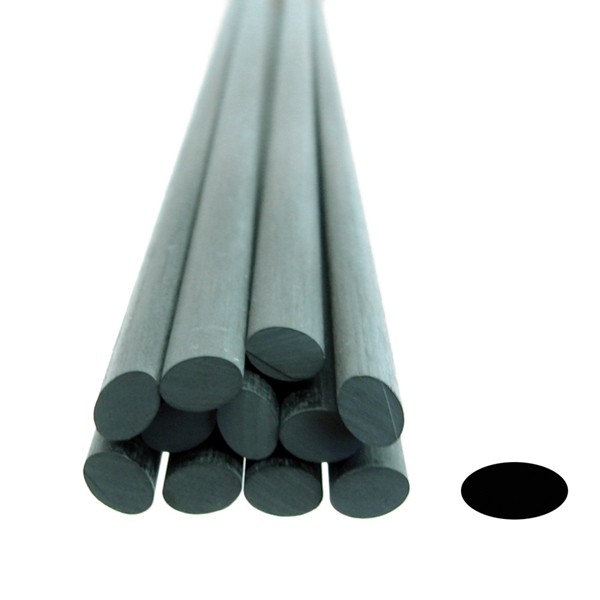

REMAINDER DPP™ CFRP ellipse rod

от 7.18 € Арт. 601080

Технические характеристики

R&G is the official distributor of DPP™ CRP profiles in Germany

Pultruded carbon-fibre rods by Van Dijk Pultrusion Products from HT carbon fibres (T300 or equivalent) and epoxy resin are drawn continuously through a die (more information see R&G eWiki). This production method causes the fibres to be oriented unidirectionally, i.e. along the length of the pultruded form. The result is a high fibre volume fraction of 62 % with a very low air voids content and a heat distortion temperature of 120 °C.

A pre-treatment of the adherent is not nescessary. We do recommend to use epoxy resin or cyanacrylate (superglue) for the bonding itself.

We can order profiles which are not listed in our eShop at DPP, starting from 25 pieces.

Tolerance specifications



Выберите интересующий вариант

DPP™ CFRP ellipse rod, ؘ 8,0 / 5,65 mm, 1000 mm

В наличии  -  Арт.: 601080061
7.18 €
Не доступен для заказа

DPP™ CFRP ellipse rod, ؘ 8,0 / 5,65 mm, 2000 mm

В наличии  -  Арт.: 601080062
13.95 €
Не доступен для заказа
