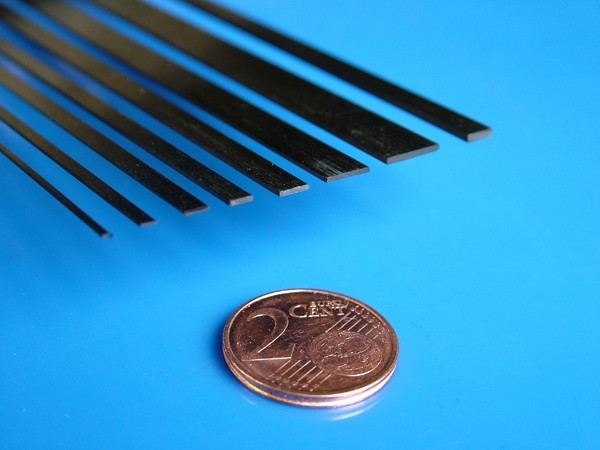

DPP™ CFRP rectangle profile HM pultruded

Технические характеристики

R&G is the official distributor of DPP™ CRP profiles in Germany

Pultruded CFRP profiles by Van Dijk Pultrusion Products, made from HM carbon fibres (High modulus fibre Torayca M 46 J or Tenax UMS 45) and epoxy resin, are drawn continuously through a die (more information see R&G eWiki). This production method causes the fibres to be oriented unidirectionally, i.e. along the longitudinal direction. The result is a high fibre volume fraction of 62 % with a very low air voids content and a heat distortion temperature of 120 °C.

In comparison to our standard types these semi-finished products offer nearly twice the stiffness with good tensile strength.

Please note:
Due to the reduced elongation at break of the employed fibres these profiles are much more sensitve to overstressing.

We can order profiles which are not listed in our eShop at DPP, starting from 25 pieces.

Tolerance specifications
