Технические характеристики

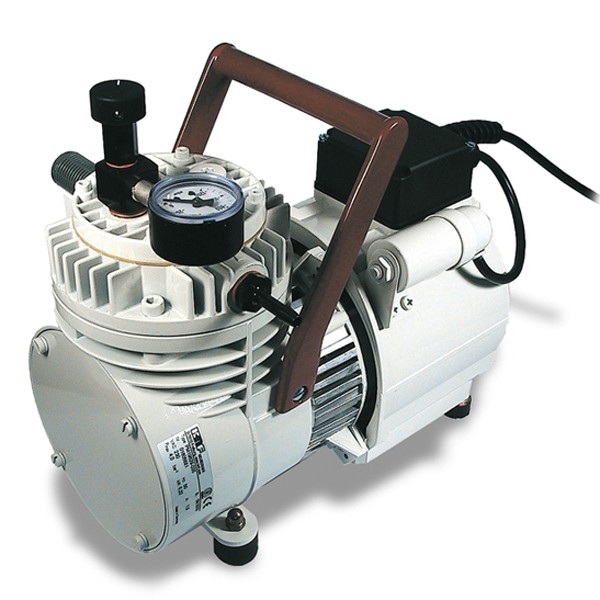

Diaphragm vacuum pump and compressor. With integrated fine adjustment valve and pressure-vacuum gauge.
Identical final vacuum as with the smaller P1-N, but with a fivefold increase in pump capacity. Ideal for small and large moulds (up to approx. 10 m² surface area).
- Unadulterated evacuation, delivery and compression of air
- 100% oil-free compressed air
- Completely maintenance-free
- High continuous output with quiet running
- Excellent durability (> 5000 h)
- Suitable for continuous operation
- Electrical design in accordance with VDE (Association of German Electrical Engineers)
Applications:
For excellent evacuation, delivery and compression of air, as well as for producing oil-free compressed air. Also particularly well suited for vacuum compression processes used in the manufacturing of fibre composite components. Product is manufactured in Germany, two year warranty. High performance and excellent durability by means of a stress-optimised structural diaphragm.
Technical data:
- Max. permitted gas and
- ambient temperature from + 5 to + 40 °C.
- Motor 220 V/50 Hz
- Protection type IP 20
- Motor output 150 W
- Current consumption 1 A
- Weight 8.2 kg
- Integrated connection for R&G pump hose Ø 6 mm (order no. 390 110-X).
- Noise level 61 dB(A)
Performance ranges:
Max. capacity at atm. pressure 30 litre/min.
Max. negative pressure during vacuum 0.85 bar (pressing compression power = 8500 kg/m²)
Max. operating overpressure n4 bar
More information
If the vacuum pumps used in a place where the air is not free of dust, so for example in a working space, where workpieces processed e.g. by grinding, we recommend to equip the vacuum with a particulate filter (R&G Vacuum filter/Universal filter 390 105-1/390 108-1). Otherwise there is a risk of dust or fine chips lodge themselves between the membranes in the vacuum pump and thereby the suction is greatly reduced. In such cases, the pump has to be returned to the manufacturer for repair. Often then, new membranes are installed.
