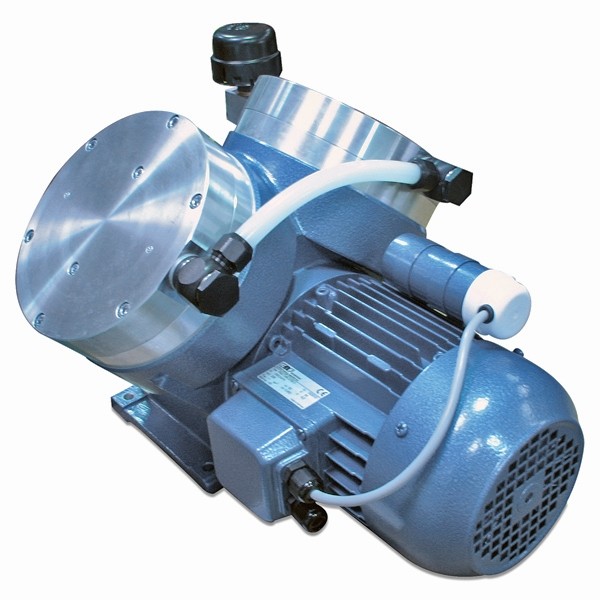

This vacuum pump is specially suited for the resin infusion process (RI).
Could be used for evacuating silicon moulding compounds additionally.
Technical data:
Suction capacity at normal pressure 150 l/min. • esidual pressure 20 mbar (respectively 0.980 bar partial vacuum) • motor rating (system of protection IP 54) 950 W • current intake 4.2 A • noise level 61 db(A) • max. permitted gas and ambient temperature between +5 °C and +40 °C • weight 28.5 kg • pump head of aluminium, diaphragms of EPDM, valves of stainless steel
Silencer is supplied loose.
- Unadulterated evacuation, delivery and compression of air
- 100% oil-free compressed air
- Completely maintenance-free
- High gas tightness: leakage of <6 x 10-3 mbar l/s (standard models) or <6 x 10-6 mbar l/s (serial versions with double membrane system)
- High continuous output
- Very quiet and smooth operation
- Cool-running motors in continuous operation mode
- Suitable for continuous operation
Applications:
Generation of oil-free compressed air and vacuum for evacuating, conveying, and compressing gases. Transferring measuring and analysing gase.
