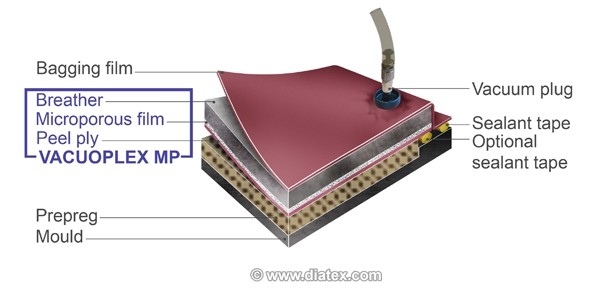

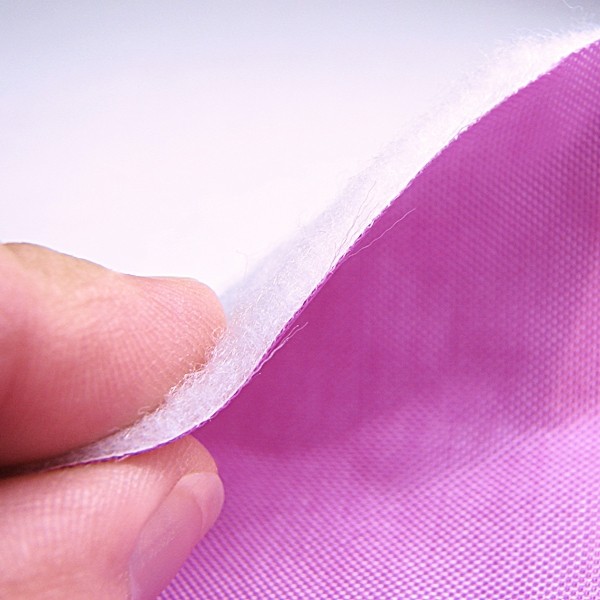

VACUOPLEX MP is a microporous multilayer system, consisting of Peel ply MP + 150 g/m² PES breather, used in manufacturing processes for vacuum moulding of composite materials with techniques such as wet lay-up, prepreg and thermoforming of organic sheet.
- Multilayer system
- All in one
- Microporous
- Eco-design
VACUOPLEX MP gives many benefits to the producers: it saves time and improves the composites quality.

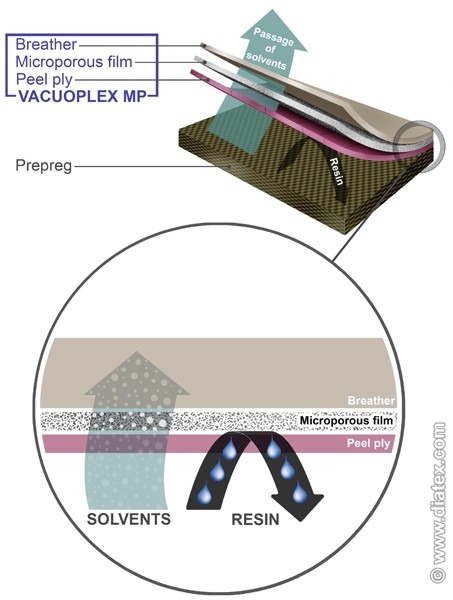

The perforated film is now replaced by a microporous film. Under vacuum the resin can’t pass through the film, except gases. Thanks to the non-woven breather, the vacuum acts uniformly on the global area during the curing process. In order to achieve release from a cured laminate, the membrane should be placed fabric side down.
Technical data:
Service temperature: 180 °C
Weight (gross): approx. 300 g/m²
Width: 150 cm
Please be aware that EADS Deutschland GmbH holds European Patent EP 1 181 149 B1 along with counterparts in other countries for the VAP infusion process. For this process a number of R&G products can be used and each end user shall consult EADS Deutschland GmbH prior to use on the VAP process.
