USA: width 57.09"

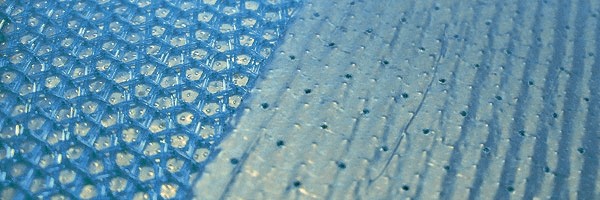

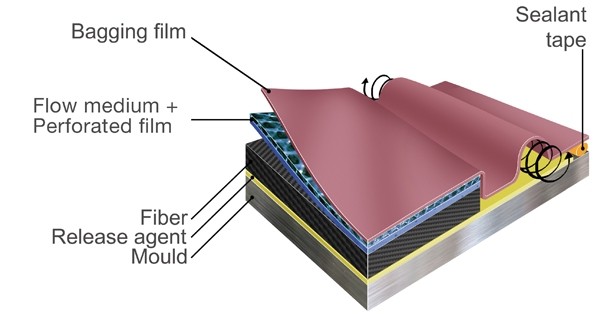

The system combines perforated film, permeable to resin and gases, and on the top the flow medium, into a two-layer unit. This easy-to-use solution has eliminated the risk of overlap or of omitted layers and thus guarantees a uniformly impregnated laminate without dry spots.Technical data

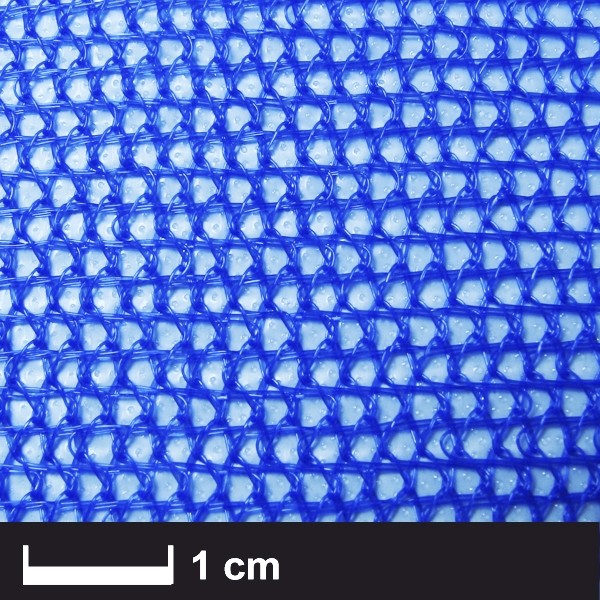

Flow medium:
- Max. temp: 90 °C
- Thickness: 900 µm
- Co-Polyethylen
- Self-releasing
- Colour: blue
- Flow speed: average
Perforated film:
- Max. temp: 90 °C
- Thickness: 25 µm
- Polypropylene
- Self-releasing
- Colour: blue
- Hole pattern: P1
